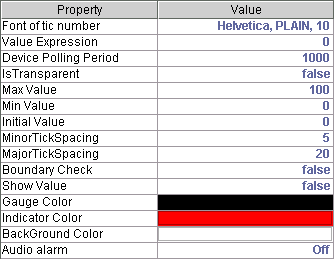

Font of tic number : font, style and size of scale numbers
Value Expression : the address(1100,1200) or symbol(1300) of matching
value and its operation
Device polling period : time period of device monitoring (1100 and
1200 / expert feature)
IsTransparent : is the background of this component transparent?
Max Value : maximum value that this gauge can display
Min Value : minimum value that this gauge can display
Initial Value : initial value that this gauge will display first
MinorTickSpacing : the interval of small graduations
MajorTickSpacing : the interval of large graduations
Boundary Check : show messages when the value which is to be displayed
on this gauge is over maximum value or below minimum value
Show Value : show display value numerically at the center of this
component
Gauge Color : the color of this gauge's scale
Indicator Color : the color of this gauge's indicator
BackGround Color: the color of this component's background
Audio alarm : audio alarm setup of this component
