Note : When this component is connected to HD1100 or HD1200, it will work as a switch which works immediately to your operation and if the you have specified "Value Expression" property, it will work as a gauge too. When connected to HD1300, it will not show immediate action to your operation. It just works as a value pre-setter for the composition of sending data.
|
|

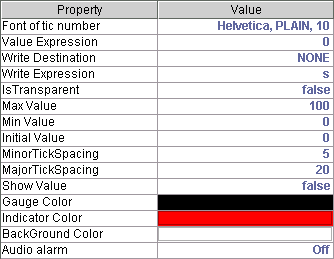

Font of tic number : font, style and size of scale numbers
Value Expression : the address(1100,1200) or symbol(1300) of matching
value and its operation
Write Destination : the target address(1100,1200) or symbol(1300) where
this switch will write its value
Write Expression : the operation which will be performed before writing its
value to Write Destination
IsTransparent : is the background of this component transparent?
Max Value : maximum value that this gauge can display
Min Value : minimum value that this gauge can display
Initial Value : initial value that this gauge will display first
MinorTickSpacing : the interval of small graduations
MajorTickSpacing : the interval of large graduations
Show Value : show display value numerically at the center of this
component
Gauge Color : the color of this gauge's scale
Indicator Color : the color of this gauge's indicator
BackGround Color: the color of this component's background
Audio alarm : audio alarm setup of this component
