Note : Toggle switch will switch between "on" and "off" every time you clicks (set of press and release) it. However, Tip switch will be "on" when it is pressed and "off" when it is released. When the 'Radio button group' is specified, the only one switch in a radio button group can be turned on at once.
Check an example on the usage of radio button group
Note : When this component is connected to HD1100 or HD1200, it will work as a switch which works immediately to your operation and if the you have specified "Value Expression" property, it will work as a gauge too. When connected to HD1300, it will not show immediate action to your operation. It just works as a value pre-setter for the composition of sending data.
|
|

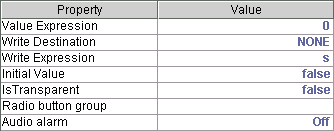

Value Expression : the address(1100,1200) or symbol(1300) of matching
value and its operation
Write Destination : the target address(1100,1200) or symbol(1300) where
this switch will write its value
Write Expression : the operation which will be performed before writing its
value to Write Destination
Initial Value : initial value that this gauge will display first
IsTransparent : is the background of this component transparent?
Radio button group : the name of radio button group where this switch
belongs to
Audio alarm : audio alarm setup of this component
