Two display types.
Seven segment : like the picture below, it will display a received value
with general LCD look font. The size of this display type can be changed by
dragging the component border.
Number text : It can display a received with general text with various
font, size and color. The size of this display can be changed by adjusting its
font size.
|
|

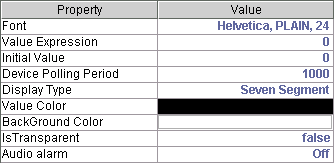

Font : font, style and size of scale numbers
Value Expression : the address(1100,1200) or symbol(1300) of matching
value and its operation
Initial Value : initial value that this gauge will display first
Device polling period : time period of device monitoring (1100 and
1200 / expert feature)
Display Type : the form of display (seven segment / number text)
Value Color : the color of value characters
BackGround Color: the color of this component's background
IsTransparent : is the background of this component transparent?
Audio alarm : audio alarm setup of this component
