홈 > 제품소개 > 안테나 기술 사양 정보

안테나



Stub Antenna

Dipole Antenna

Patch Antenna
Electrical
Specifications		 Frequency 2400-2500 MHz
Gain 1 dBi 3 dBi 5 dBi 9 dBi
Impedance 50 Ω
VSWR 1.9 : 1 Max 1.5 : 1 Max
Radiate pattern Omni Directional
Operating
Temperature		 -20° C to 60° C -30° C to 90° C -30° C to 60° C
Mechanical
Specifications		 Weight 3.5 g 12 g 24 g 160 g
Size L 30 mm x
D 9 mm		 L 124 mm x
D 10 mm		 L 196 mm x
D 13 mm		 W 90 x H 127
x D 68 mm
Finish Matte Black Matte Black Matte Black Light Silver
Plastic Case
Radiator Material Piano wire Copper Copper Brass
Polarization Linear Vertical
Connector Reverse Polarity SMA Male Plug SMA Female R/A

Part Number Description Connector Type Related Products
SAT-G01 Sub Antenna SMA Plug Left Hand Thread
>> Large Image		 Parani-SD100/200
Parani-ESD110/210
Parani-MSP100
DAT-G01 Dipole Antenna
PAT-G01 9dBi Patch Antenna with SMA Plug Left hand Thread Default Cable.(SMA Jack Right hand Thread w/o Default Cable)
SAT-G01R Stub Antenna RP-SMA Plug Right Hand Thread
>> Large Image		 Parani-MSP1000
Parani-ESD1000
Parani-SD1000
PS110W/210W
DAT-G01R Dipole Antenna
DAT5-G01R Dipole Antenna
PAT-G01R 9dBi Patch Antenna with RP-SMA Plug Right hand Thread Default Cable.(SMA Jack Right hand Thread w/o Default Cable)


안테나 연장 케이블

Part Number Connector Type Description Antenna
SEC-G01 SMA Plug Left Hand Thread
>> Large Image 		15cm Extension Cable For SAT-G01 / DAT-G01
RFC-G01 1m Extension Cable For PAT-G01
SEC-G01R RP-SMA Plug Right Hand Thread
>> Large Image 		15cm Extension Cable For SAT-G01R / DAT-G01R /
DAT5-G01R
RFC-G01R 1m Extension Cable For PAT-G01R

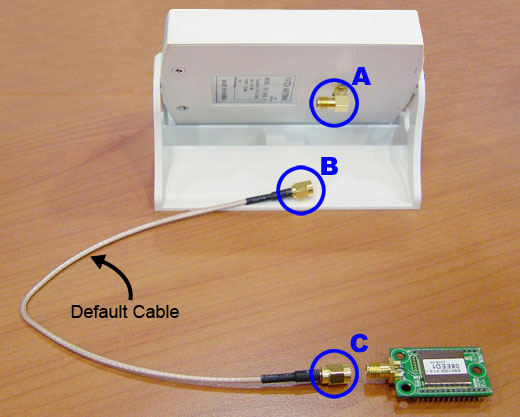

패치 안테나 보기



A B C
SMA Jack Right Hand Thread SMA Plug Right Hand Thread PAT-G01 : SMA Plug Left Hand Thread PAT-G01R : RP-SMA Plug Right Hand Thread
