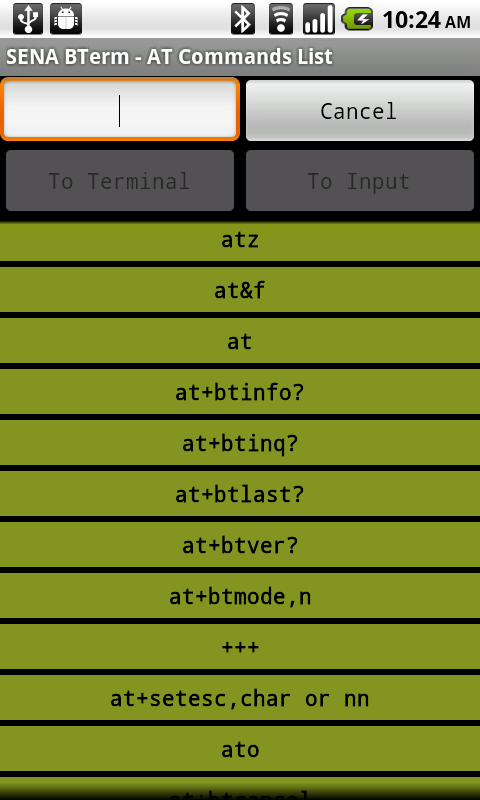

 Running the SENA BTerm is based on AT commands. The 'AT Commands List' dialog explains the AT commands. The user can easily write AT Commands to terminal or to the input edit box in the 'Toolbox Input Pane'.
 The user can open the 'AT Commands List' dialog by selecting 'AT Commands List' option menu.

  • Selecting An AT Command

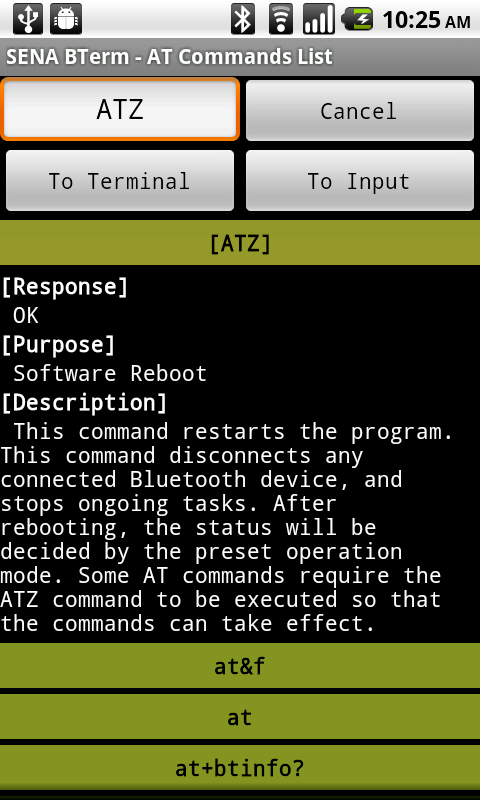

    •  If an AT command is selected, the explanation of the AT command is displayed and all of or some part of the AT command is pasted to the edit box. If the AT command is available at the current Bluetooth status and terminal mode, the 'To Terminal' button and the 'To Input' button is enabled.

  • To Terminal
    •  Clicking the 'To Terminal' button copies the AT command written in edit box to terminal pane. Although all the AT commands except '+++' are followed by CR+LF, CR+LF are not attached to the AT command because most of AT commands need additional parameters before CR+LF. The user needs to write some parameters if necessary and click the 'Enter' key on keyboard.
  • To Input
    •  Clicking the 'To Input' button copies the AT command written in edit box to the input edit box in the 'Toolbox Input Pane'. The user needs to write some parameters if necessary and select the 'cr' button and 'lf' button before clicking the 'enter' button to apply it to the Bluetooth adapter of the local device.
  • Cancel
    • closes dialog.
  ATZ
  AT&F
  AT
  AT+BTINFO?
  AT+BTINQ?
  AT+BTLAST?
  AT+BTVER?
  AT+BTMODE,n
  +++
  AT+SETESC,char or nn
  ATO
  AT+BTCANCEL
  AT+BTSCAN
  AT+BTSCAN,n,to
  AT+BTSCAN112233445566,to
  ATD
  ATD112233445566
  ATH
  AT+BTSD?
  AT+BTNAME=devicename
  ATS
  ATSnn?
  ATSnn=mm
  ATS10
  ATS11
  ATS23
  ATS28
  ATS46
