The 'Miscellaneous' page of the 'Bluetooth Management' dialog opens when the
'miscellaneous' tab is selected in the 'Bluetooth Management' dialog.
The user can stop the current task like inquiring the remote devices, connecting to or listening to
remote device. The user can also change the terminal mode at 'CONNECT' Bluetooth status and close the Bluetooth
connection. In addition, the user can start the remote device configuration to the SENA Bluetooth devices
which support the remote configuration through Bluetooth connection.
|
|
|
|
 |
|
|
|
- Cancel (AT+BTCANCEL)
writes 'AT+BTCANCEL' command with CR+LF to terminal
which makes the Bluetooth adapter stop the current task like
- searching remote devices nearby(PENDING : On Inquiring)
- connecting to remote devices(PENDING : On Connecting)
- listening to remote device(PENDING : On Listening)
at 'PENDING' Bluetooth status.
|
|
|
 |
|
|
|

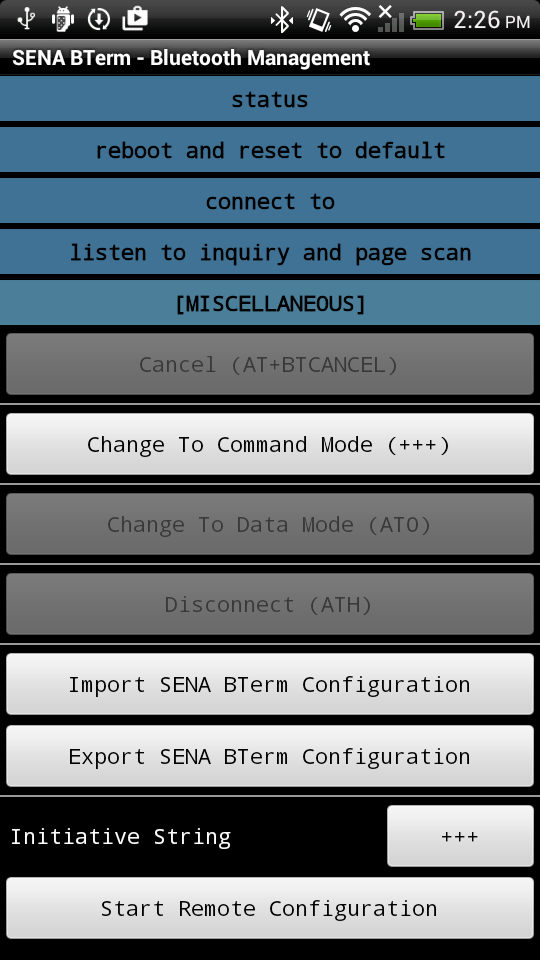

- Change To Command Mode (+++)
writes '+++' command WITHOUT CR+LF to terminal
which changes the terminal mode from 'DATA' to 'COMMAND' at 'CONNECT' Bluetooth status.
'+++' is escape sequence string which consists of three escape sequence characters without
CR+LF. It is possible when 'ATS11=1' that means escape is enabled.
Escape sequence character can be modified using 'AT+SETESC'
command or 'ATS28='.
By default, escape is enabled, escape sequence character is '+' and escape sequence string is '+++'.
|
|
|

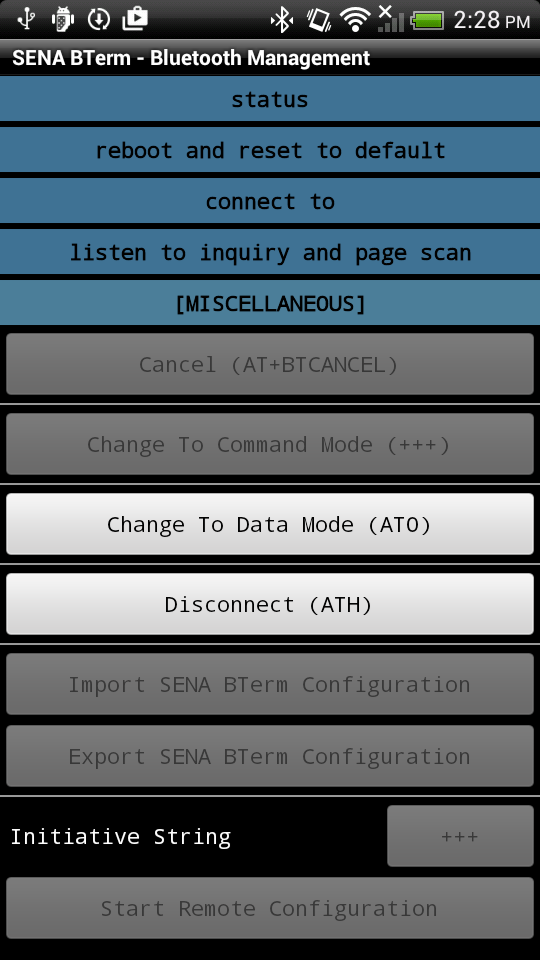

- Change To Data Mode (ATO)
writes 'ATO' command with CR+LF to terminal
which changes the terminal mode from 'COMMAND' to 'DATA' at 'CONNECT' Bluetooth status.
|
|
|
- Disconnect (ATH)
writes 'ATH' command with CR+LF to terminal
which closes the Bluetooth connection at 'COMMAND' terminal mode and 'CONNECT' Bluetooth status.
|
|
|
- Import SENA BTerm Configuration
starts receving the configurations of the SENA BTerm app on the android device at the opposite side of bluetooth connection
and disconnect the bluetooth connection to apply them to your android device. You can import such SENA BTerm configurations
as the Terminal Setting, Bluetooth Configurations and the Function / Special Keys settings.
This is available at 'DATA' terminal mode and 'CONNECT' Bluetooth status.
|
|
|
- Export SENA BTerm Configuration
starts sending the configurations of the SENA BTerm app on your android device to the android deviceat the opposite side of
bluetooth connection. The importing device is automatically set to same configurations as those of your android device.
|
|
|
- Start Remote Configuration
is provided to configure SENA industrial Bluetooth devices which support the Remote Device Configuration function.
Please, refer to Remote Device Configuration for more information.
|
|
|
 |
|
|
